How to Fix a Vacuum Leak (Step-by-Step)

A vacuum leak is unmetered air entering the engine after the mass airflow (MAF) sensor (or bypassing expected airflow paths). The result is usually a lean condition, unstable idle, hesitation, and sometimes a check engine light. This guide walks you through a practical, repeatable process to find the leak, confirm it, repair it properly, and verify the fix.

Safety note: Work on a cool engine when possible. Keep hands, clothing, and tools away from belts/fans. Use sprays carefully and never near hot exhaust components.

Common symptoms of a vacuum leak

• Rough or high idle, idle surge, stalling at stops
• Hesitation or poor throttle response
• Hissing/whistling sound from engine bay
• Check Engine Light (often lean codes like P0171/P0174)
• Fuel trims significantly positive on a scan tool (engine adding fuel to compensate)

Tools and supplies

Basic

• Flashlight
• Nitrile gloves, safety glasses
• Pliers (for spring clamps)
• Screwdrivers, small socket set
• Shop towels

Diagnostic (pick what you have)

• OBD2 scanner that shows live data (fuel trims / STFT / LTFT is ideal)
• Smoke machine (best method if available)
• Carb cleaner or brake cleaner (use sparingly)
• Soapy water spray bottle (for some external checks)
• Hand vacuum pump (optional, helpful for testing certain components)

Repair supplies

• Assortment of vacuum hose (common sizes vary by vehicle)
• Replacement elbow connectors / tees (plastic fittings get brittle)
• Hose clamps (spring or worm clamps)
• Intake boot / duct tape is not a repair—replace the boot if cracked
• Replacement gaskets if leak is at a sealing surface (throttle body gasket, intake manifold gasket, etc.)

What counts as a “vacuum leak” (and what doesn’t)

Vacuum leak sources:

• Cracked vacuum hoses, elbows, tees
• Intake boot cracks (between airbox/MAF/throttle body)
• Loose clamps
• Leaking intake manifold gasket
• Throttle body gasket leak
• Brake booster hose/check valve leak
• PCV hose/PCV valve gasket leak
• EVAP purge valve stuck open (acts like a vacuum leak at idle)

Not a vacuum leak:

• Dirty throttle body causing sticky idle control
• Failing ignition coil/misfire (can mimic lean behavior)
• Fuel delivery problem (can trigger lean codes without unmetered air)

Step-by-step: Find and fix the leak

Step 1) Pull codes and look at fuel trims (if you have a scanner)

• Start the engine and let it idle.
• Check:
• STFT (Short-Term Fuel Trim)
• LTFT (Long-Term Fuel Trim)
• A common pattern with vacuum leaks:
• Idle trims are high positive (engine adding fuel)
• Trims improve when revved slightly (because leak becomes a smaller percentage of airflow)
• As a rough rule:
• 0 to +5% is generally healthy
• +10% to +25% suggests a strong lean correction (often vacuum leak or fuel issue)
  (Exact thresholds vary by vehicle.)

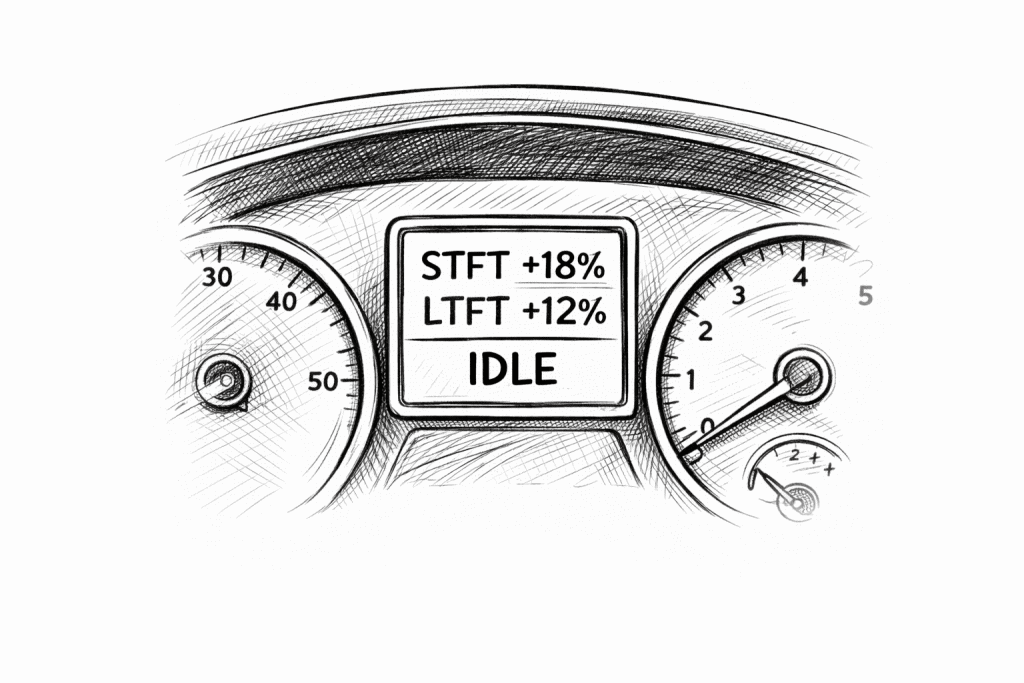

Dashboard display showing positive fuel trim readings at idle, with STFT at +18% and LTFT at +12%.

Step 2) Do a fast visual inspection (most leaks are obvious)

• Engine off. Use a flashlight and follow air/vacuum paths:
• Air intake tube from airbox → MAF → throttle body
• Small hoses from intake manifold to:
  • Brake booster
  • PCV system
  • EVAP purge valve
  • Any vacuum reservoir/solenoids
• Look for:
• Split rubber elbows
• Soft, collapsed hoses
• Hoses that slipped off a nipple
• Cracked intake boot (especially on underside)
• Missing clamps

Engine bay illustration highlighting the intake tube connection and PCV hose routing for vacuum system inspection.

Step 3) Listen for the leak (quick “poor man’s stethoscope”)

With the engine idling:

• Listen around the intake manifold area
• Use a piece of hose as a listening tube (one end near suspected areas, other end at your ear)

A vacuum leak often sounds like:

• Sharp hiss
• Whistle
• Rhythmic sucking noise

Step 4) Check the intake boot and clamps (high-probability fix)

This is one of the most common failures.

• Wiggle the intake boot gently while idling (do not put your hand near belts)
• Look for hidden cracks on the underside
• Tighten loose clamps

If boot is cracked: replace it. Tape is temporary and usually fails quickly from heat/oil.

Step 5) Test the PCV system (very common leak source)

A PCV hose split or a PCV valve/grommet leak creates a direct unmetered air path.

Checks:

• Inspect PCV hose for cracks at ends
• Inspect rubber grommet/O-ring where PCV seats
• If you pinch the PCV hose at idle and the idle changes noticeably, it can indicate a PCV-related leak (results vary by design)

A failing PCV valve or deteriorated PCV hose is one of the most common causes of vacuum leaks. If you suspect the PCV system is involved, follow this step-by-step PCV Valve Replacement Guide to inspect and replace the valve, hose, and sealing grommet correctly.

Step 6) Check brake booster hose and check valve

Brake booster leaks can be big and obvious.

• Locate the large hose from intake to brake booster
• Inspect for cracks, loose connection
• Check the plastic one-way valve (often near booster)

Simple test:

• With engine idling, gently pinch the booster hose (if safe). If idle changes significantly, suspect booster hose/check valve/booster leak.

Step 7) Check the EVAP purge valve (often overlooked)

A purge valve stuck open can pull vapor/air at idle, acting like a vacuum leak.

Clues:

• Lean at idle, improves off-idle
• Idle issues after refueling sometimes

Basic test (varies by vehicle):

• Locate purge line into intake
• Temporarily clamp the purge hose (only as a diagnostic moment)
• If idle stabilizes or trims impr

Step 8) Use a controlled spray test (only if you can do it safely)

Use extreme caution. Keep away from hot exhaust and ignition sources.

Engine idling:

• Lightly spray carb cleaner/brake cleaner around suspected gasket surfaces:
  • Intake manifold seams
  • Throttle body perimeter
  • Vacuum hose connections

If engine RPM changes briefly, you may have found the leak point.

Important: Some modern engines won’t react strongly. A smoke test is more reliable.

Illustration showing a light spray test used to check for vacuum leaks at a gasket seam.

Step 9) Smoke test (best method if you have access)

A smoke machine reveals leaks fast and removes guesswork.

How it works:

• Introduce smoke into the intake tract (usually through a service port or intake pipe)
• Seal openings as needed
• Watch for smoke escaping around hoses, gaskets, fittings

If you don’t own a smoke machine:

• Many shops can diagnose quickly and you can still do the repair yourself.

Repair steps (based on what you find)

Repair A: Replace a cracked vacuum hose or elbow

1. Remove the old hose
2. Match diameter and length (don’t stretch undersized hose)
3. Cut clean square ends
4. Install fully seated
5. Add a clamp if the fitting is smooth or if hose is loose

Pro tip: Replace brittle plastic tees/elbows instead of reusing.

Repair B: Replace intake boot/duct

1. Loosen clamps at both ends
2. Disconnect any breather/PCV fittings attached to the boot
3. Install new boot in same orientation
4. Tighten clamps evenly
5. Reconnect fittings and confirm they lock in place

Repair C: Replace gasket (throttle body or intake manifold)

This is more involved but still DIY on many vehicles.

General best practice:

• Remove components for access
• Clean sealing surfaces carefully (no gouging)
• Install new gasket (correct orientation)
• Torque fasteners evenly in sequence (use service manual specs)

If you’re doing an intake manifold gasket and your engine is known for warping/plastic manifolds, consider professional guidance.

Verify the fix (don’t skip)

After repairs:

1. Start engine and let it idle for 2–3 minutes
2. Check for hissing
3. Check fuel trims again:
   • trims should move closer to zero at idle
4. Clear codes if present
5. Test drive 10–15 minutes and re-check trims/codes

Common mistakes that cause repeat problems

• Replacing a hose but leaving the cracked elbow/tee
• Fixing one leak while missing a second leak
• Overtightening clamps and cracking plastic fittings
• Ignoring oil saturation (oil breaks down rubber hoses and boots)

Recommended images/illustrations (minimal set that works)

1. Top-down engine bay sketch showing likely vacuum leak points
2. Spring clamp compression diagram (pliers + clamp sliding back)
3. Intake boot crack close-up (underside)
4. Spray test or smoke test concept image
