The Toyota Corolla is one of the most widely driven and modified compact cars in Canada. Whether you’re upgrading to aftermarket wheels or replacing damaged rims, knowing your Corolla’s bolt pattern is essential. Choosing the wrong bolt pattern can lead to unsafe driving conditions, poor fitment, and costly mistakes.
This comprehensive blog will explore the bolt pattern specifications for Toyota Corolla models sold in Canada from 2003 to 2025, including how to measure bolt patterns, key fitment data, and compatibility notes for different trims.
A bolt pattern, or PCD (Pitch Circle Diameter), refers to the number of wheel studs and the diameter of the circle they form. It’s expressed as:
[Number of bolts] x [Diameter in mm]
For example:
Getting the bolt pattern right is critical for wheel fitment. A mismatch can cause:
Toyota has used two primary bolt patterns for the Corolla in Canada in the last two decades.
| Model Year | Generation | Bolt Pattern | Lug Nuts | Center Bore | Thread Size | Common Rim Size |
|---|---|---|---|---|---|---|
| 2003–2008 | 9th Gen (E120) | 5×100 | 5 | 54.1 mm | M12 x 1.5 | 15″–16″ |
| 2009–2013 | 10th Gen (E140) | 5×100 | 5 | 54.1 mm | M12 x 1.5 | 15″–17″ |
| 2014–2018 | 11th Gen (E170) | 5×100 | 5 | 54.1 mm | M12 x 1.5 | 15″–17″ |
| 2019–Present | 12th Gen (E210) | 5×114.3 | 5 | 60.1 mm | M12 x 1.5 | 16″–18″ |
✅ Key Change: In 2019, Toyota upgraded the Corolla to the TNGA platform, switching the bolt pattern from 5×100 to 5×114.3 mm, aligning with other Toyota models like the Camry and RAV4.

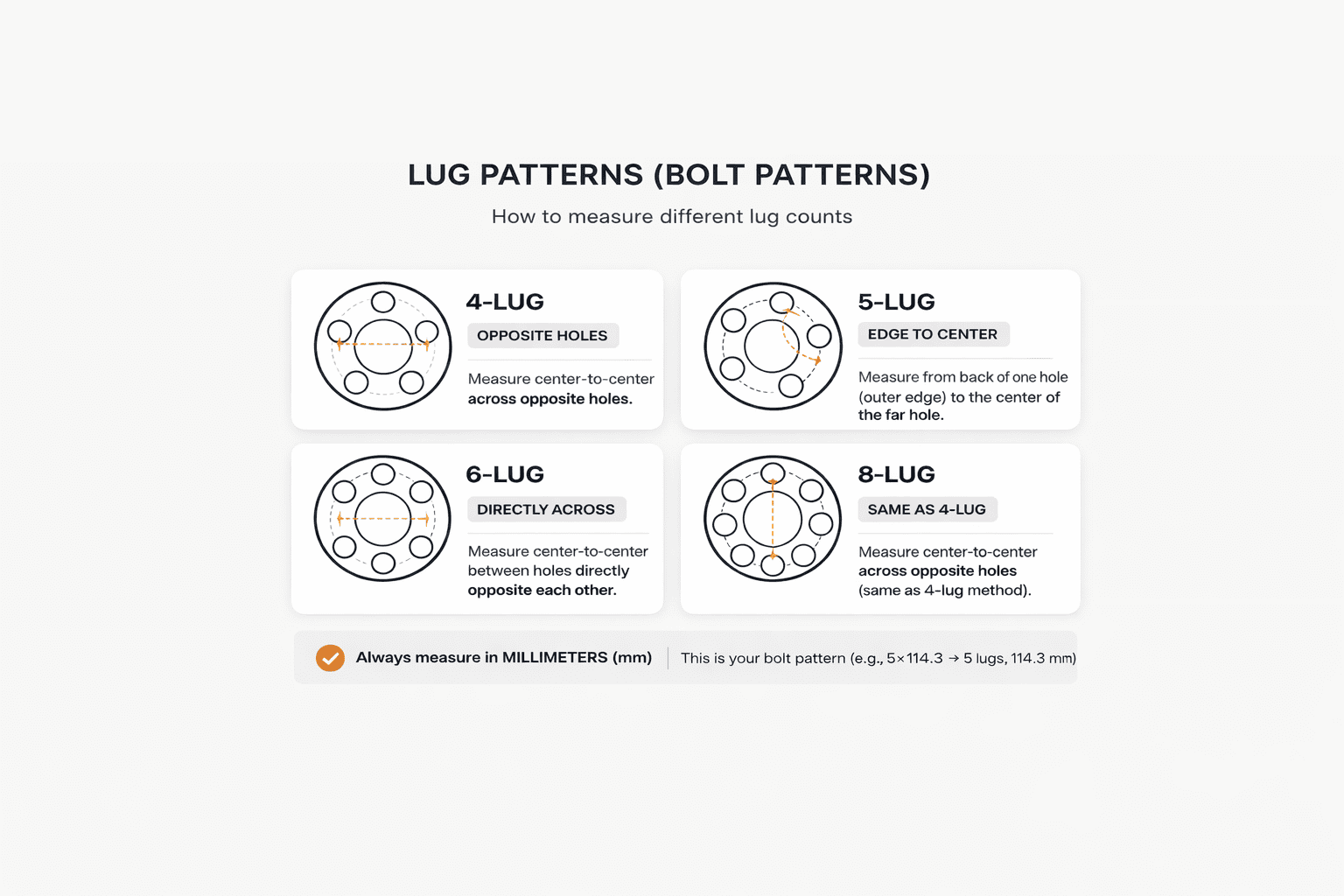

If you want to measure a bolt pattern manually:
However, for accurate measurement, use a bolt pattern gauge or refer to your owner’s manual.
Toyota offers various Corolla trims in Canada, including:
| Trim | Years Available | Bolt Pattern |
|---|---|---|
| CE / LE / S | 2003–2018 | 5×100 |
| L / LE / XLE | 2019–2025 | 5×114.3 |
| SE / XSE | 2019–2025 | 5×114.3 |
| Corolla Hatchback | 2019–2025 | 5×114.3 |
| Corolla Hybrid | 2020–2025 | 5×114.3 |
Even the Corolla Hybrid and Hatchback models use the 5×114.3 mm pattern since 2019. This uniformity makes aftermarket wheel shopping easier post-2019.
The bolt pattern isn’t the only fitment factor. You also need to consider:
When upgrading to aftermarket wheels, follow these compatibility rules:
| Fitment Rule | Advice |
|---|---|
| Bolt pattern match | Must be exact: 5×100 or 5×114.3 only |
| Center bore size | Match hub or use hub-centric rings |
| Offset range | Keep within +35 to +45 mm |
| Wheel diameter | Don’t exceed 18″ without clearance checks |
| Tire sizing | Ensure rolling diameter stays within ±3% |
Here’s how the Corolla stacks up with popular Toyota models in Canada:
| Model | Years | Bolt Pattern | Interchangeable with Corolla? |
|---|---|---|---|
| Toyota Camry | 2012–2025 | 5×114.3 | Yes (2019+ Corolla only) |
| Toyota Matrix | 2003–2014 | 5×100 | Yes (2003–2018 Corolla only) |
| Toyota Prius | 2004–2022 | 5×100 → 5×114.3 | Mixed (check year) |
| Toyota RAV4 | 2006–2025 | 5×114.3 | Yes (2019+ Corolla only) |
| Toyota Yaris | 2006–2020 | 4×100 | No |
This makes it easy to share or swap wheels between compatible Toyota models—just match the generation and bolt pattern.
Many Canadian drivers opt for dedicated winter wheels to protect their OEM rims from salt and ice.
When installing or rotating wheels, proper torque is crucial:
| Model Year | Torque Spec (ft-lbs) |
|---|---|
| 2003–2018 | 76–80 ft-lbs |
| 2019–2025 | 85–90 ft-lbs |
Always tighten in a crisscross pattern and recheck torque after 50–100 km.
| Year Range | Bolt Pattern | Key Note |
|---|---|---|
| 2003–2018 | 5×100 | Older generations; smaller bore |
| 2019–2025 | 5×114.3 | New TNGA platform; larger bore |
If you’re buying used rims, aftermarket wheels, or winter steelies, verify both the bolt pattern and center bore for your Corolla generation.
Whether you’re a Corolla enthusiast upgrading to alloy wheels or a winter driver in Alberta seeking steelies, understanding your vehicle’s bolt pattern, offset, and hub size is essential.
The shift in 2019 to a 5×114.3 mm bolt pattern marked a new era of compatibility for Corolla owners, opening access to a wider range of aftermarket wheels shared with the Camry, RAV4, and others.
When in doubt, consult a fitment guide or work with a professional installer to ensure safety and performance. After all, a great set of wheels not only enhances aesthetics—it also supports ride quality, traction, and fuel efficiency.
